How to Specify and Order Larsen's Fire Hose and Valve Cabinets
 |
SELECT THE TYPE OF CABINET A. Fire Hose Cabinets B. Fire Dept. Valve Cabinets C. Combination Fire Dept. Valve Cabinets & Extinguisher Cabinets D. Fire-Rated Option for Valve, Fire Hose, and Combination Valve & Extinguisher Cabinets |
 |
DETERMINE THE SIZE FROM THE INTERIOR CONTENTS A. Complete Rack Units, Valves, & Components B. Fire Extinguishers |
 |
CONSIDER THE WALL DEPTH & TRIM PROJECTION |
 |
SELECT THE TRIM AND DOOR MATERIAL A. Steel: One piece, heavy gauge cold rolled steel with a standard finish of white baked acrylic enamel, which can be used as either a finish or prime coat. To specify steel trim and door use "S" after the "HC" or "VC" prefix. B. Aluminum: Extruded or fabricated aluminum with satin anodized finish. Clear anodized is standard, and a wide selection of optional color anodized finishes is available. All trim and door corners are mitered. To specify aluminum trim and door, use "AL" after the "HC" or "VC" prefix C. Stainless Steel: One piece, heavy gauge, 304 stainless steel with a #4 or #8 finish. To specify stainless steel use "SS" after the "HC" or "VC" prefix. NOTE: Brass and bronze may not be available for all hose cabinet sizes. D. Solid Brass or Solid Bronze: One piece, heavy gauge solid brass or bronze with standard #4 finish. To specify brass use "B" or to specify bronze use "BZ" after the "HC" or "VC" prefix. BOX SPECIFICATION: All recessed and semi-recessed cabinets and surface-mounted steel cabinets have a heavy gauge, white baked enamel box. Surface-mounted cabinets with aluminum door and trim have a box constructed entirely of clear or color anodized aluminum. Surface-mounted cabinets and stainless steel door and trim have a box constructed entirely of 304 stainless steel with a #4 finish. |
 |

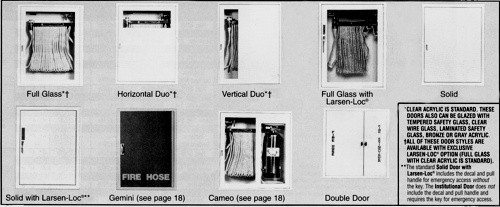

DETERMINE THE APPROPRIATE DOOR STYLE
|
| *Clear acrylic is standard. These doors can also be glazed with tempered safety glass, clear wire glass, laminated safety glass, bronze or gray acrylic. † All of these door styles are available with exclusive Larsen-Loc option (Full Glass With Clear Acrylic Is Standard). **The standard Solid Door with Larsen-Locｮ includes the decal and pull handle for emergency access without the key. The Institutional Door does not include the decal and pull handle for emergency access. |
