Babcock Davis Lightweight Insulated Access Doors
Available Models: B-LW
Cierra B-LW Series lightweight access panels offer an innovative solution for larger openings without compromising interior design or safety. The prefinished embossed door panels provide an architecturally pleasing appearance. All aluminum construction is also available.
B-LW Series - LightweightDoor: 26 gauge prefinished embossed galvanized steel. Optional: .063 aluminum panel insert
Frame: .045 6063-T5 extruded aluminum
Hinge: Aluminum continuous piano hinge
Latch: Screwdriver cam latch
Flange: Rolled 1-5/16" wide
Finish: White embossed steel
Insulation: 3/4" polystyrene with 3.8 R-value at 75 degrees F temperature

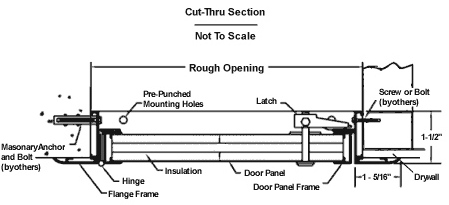

Diagrams and Model Sizes
Model B-LW
 |
|
| Click on an image above to view the larger detailed diagram | |
| Lightweight B-LW Series | ||
| Standard Sizes width x height | ||
| (mm) | (in) | |
| 610 x 610 | 24 x 24 | |
| 559 x 762 | 22 x 30 | |
| 559 x 914 | 22 x 36 | |
| 610 x 914 | 24 x 36 | |
| 610 x 1219 | 24 x 48 | |
| 762 x 762 | 30 x 30 | |
| 762 x 914 | 30 x 36 | |
| 914 x 914 | 36 x 36 | |
| 914 x 1219 | 36 x 48 | |
| 1219 x 1219 | 48 x 48* | |
| 1524 x 1219 | 60 x 48* | |
| 1828 x 1219 | 72 x 48* | |
All access panels are hinged on the second dimension (height).
*Double door construction
